The Walther PPS

 by Mishaco (Posted on TFR 12-Jan-12)

This is all about the Walther PPS slim compact pistol, chambered for the 9x19mm cartridge. This is one of my favorite newer weapons and one I have owned for four years now.

I decided to do this post after an individual claimed that the Smith & Wesson imported PPSs are not all German. While trying to disprove his claim, I discovered a lot of half-truths and vague statements surrounding this handgun online.  I also have an e-mail dialogue with Earl over at CarlWalther.com on the subject of where the PPS pistols are made.

The Basics

Lets just shamelessly rip some text off wikipedia to begin with. You can find errors there but for the most part the site gets the general and basic points right when it comes to firearms.

Here is the link to the Wikipedia article.

"Polizei-Pistole Schmal / Police Pistol Slim
Type Semi-automatic pistol
Place of origin: Germany
Designer Carl Walther GmbH Sportwaffen
Manufacturer Carl Walther GmbH Sportwaffen
Produced 2007—present
Variants PPS, PPS Police, PPS First Edition

Specifications:
Weight 550 g (19.4 oz) (9x19mm Parabellum empty)
560 g (19.8 oz) (.40 S&W empty)
Length 160.5 mm (6.32 in)
Barrel length 81 mm (3.2 in)
Width 27 mm (1.1 in) (including controls)
Height 112 mm (4.4 in) (small magazine)
124 mm (4.9 in) (medium magazine)
134 mm (5.3 in) (large magazine)
Cartridge 9x19mm Parabellum, .40 S&W
Action Short recoil operated
Muzzle velocity 350 m/s (1,148 ft/s) (9x19mm Parabellum)
335 m/s (1,099 ft/s) (.40 S&W
Effective range 50 m (55 yd) (9x19mm Parabellum)
Feed system 6, 7 or 8 round detachable box magazine (9x19mm Parabellum)
5, 6, or 7 round detachable box magazine (.40 S&W)
Sights Interchangeable 3-dot iron sights"

The article goes on to state that the PPS is about the same size as Walther's classic PPK design. Even though the PPS is chambered for a full power cartridge, this is surprisingly not far off the mark. The PPS is a bit taller than the PPK and a hair longer, but is actually slimmer, especially in the grip area. The PPS was introduced in Germany, in 2007 and the 9mm was first seen in the USA towards the end of that same year. The .40 cal version appeared some time later, about six months to a year depending on location. That said, the PPS was designed from the very beginning to chamber either round with just minor parts differences in the barrel, slide, recoil spring, and magazines.

Wikipedia says this about the pistol's manufacture:
"In the United States, the PPS is imported exclusively by Smith and Wesson, using pistols made manufactured by the Walther facilities in Ulm, Germany. The PPS pistols are also made under license in Poland by Fabryka Broni Radom."

Some have questioned rather or not S&W marked PPSs are 100% German or not. Later, we will come to a definitive answer.

Back to the gun though, its quite a neat little gun. Its small but does have a bit of weight. This is because the polymer frame is reinforced with a steel internal frame work and the slide rides on full metal rails - not partial metal or polymer rails. The slide itself is also made of all steel, including the sights, so its a bit heavier, but also durable. The pistol is striker fired with a partially charged trigger/striker. The PPS uses the now very standard Browning style of locked breech operating system where in the chamber is enlarged and acts as one massive lug: i.e. like Walther's earlier P99 series or a Glock. A dual recoil spring arrangement is used which both lessens felt recoil and helps improve accuracy. Trigger is similar to a Glock's with the small safety bar in the middle, but it breaks a bit differently. Sights are dovetailed and adjustable and easily removed/replaced if desired.  The magazine release is located under the trigger guard and is the standard German style. Many Americans find this style unusual or awkward, but in a CCW piece it's an asset. It's basically impossible to dump a magazine with this style of mag release while in a pocket or holster. With say, a SIG, one could accidently jar the weapon from the side, depressing the M1911 style release button. That is little concern with the release style found on the Walther though. Once shooters get accustomed to this style of release, they will find it quite user friendly.

Walther makes three different sized magazines for the PPS. The six round magazine is a flush fit and makes the gun very compact. The seven round magazine gives a bit of a finger rest for the shooter and is great for range use or to use when size isn't as big of a concern. The largest sized magazine, the eight rounder, gives the shooter a fullsized grip comparable to the one found on the Walther P99 or the Glock G19. Its actually quite amazing how much the eight round mag changes the feel of the weapon. For the .40 cal. version, the same sized magazines are offered, but hold one less cartridge because of the larger caliber. Finally, the PPS has what Walther/S&W calls the 'Quick Safe' system. As with the P99, the PPS has interchangeable backstraps. Unlike the P99 however, when the backstrap is removed, the weapon is decocked and rendered safe. As soon as a backstrap is reinstalled, its ready to go again. This is the pistol's most controversial feature which we will look at more closely later. The PPS is packaged standard with a large and a small backstrap. Wikipedia mentions a medium strap, but I have never held one myself, so I don't know if they actually exist. Naturally, there is a MIL-STD-1913 (Picatinny) rail located under the barrel: pretty much a mandated feature on any new production handgun it seems.

Here is the PPS on Max's ModernFirearms site

Here is S&W's Walther PPS page

Here is the page on Earl's Repair/Carl Walther.com

My Two PPSs

I have now owned two different Walther PPS pistols in 9mm. The first I bought in late 2007, right after their introduction. It came with one six round and one seven round magazine and two backstraps in a standard, rounded Walther type case. I had it until recently. It was 100% reliable for me - however, my cousin wanted it so I sold it off to him and kept one of the newer ones I had come in last month. The slide stop on my AH code PPS never gave any troubles and so I never had S&W rework it.

Markings are as follows:
Left Side
Walther PPS
Carl Walther Ulm/DO.
Made in GErmany

On right side
Smith&Wesson
Springfield MA
DE with Eagle over N proof and BB date code followed by the Ulm Antlers
Pistol's serial number
Warning Read Safety Manual

On Chamber area of the barrel
Walther 9mmx19
Eagle with N proof mark
Serial Number

The frame is marked with the serial and Walther twice, as well as Made in Germany.
The pistol is pictured above with all 3 magazine sizes.
Magazine is marked Walther PPS and Made in Italy. This is because MEC-GAR has been producing magazines for Walther under license for a number of years now. It is very common for major manufacturers to outsource their magazines.
Both backstraps are also shown with the small one installed on the pistol.
The BB datecode just stands for 11 or 2011.

Both this new PPS and my old PPS came in the same type of box, however, for a time S&W was shipping PPSs in a different style of box. That style was more like an S&W case and square. I have no idea why they changed, and then changed back, sorry. I do like the Walther rounded box better though as it holds the pistol with the eight round mag inserted better, as well as holding two spare mags easier.

I personally have never experienced any problems with either of my PPSs. I find the design thoughtful and easy to both carry and fire. Its about as tall and long as a Glock G26/27 but only 1" thick. The trigger has a relatively crisp and light pull for a defensive weapon.

Reviews & Comparisons

Here is a sampling of online reviews of the pistol to date.

Hickok45's Walther PPS Review on Youtube

Nutnfancy's PPS Review on Youtube

'Walther’s New PPS 9mm Semi-Auto Pocket Gun' (older article from 2007)

The Walther PPS on Concealed Carry Forums

Another PPS Review

"KahrPM vs Walther PPS decision made. best price?"

"Ruger LC9 vs Walther PPS"

'Walther PPS - finaly made my choice, here's my review ' on THR

'Walther PPS' on M14forums

"Available Upgrades for Walther PPS 9MM."

Another PPS discussion

"Walther PPS mag release technique?"
I like the German style of magazine release for a CCW, but others extremely used to the M1911 and others find it difficult to adapt to sometimes.

Issues & Complaints

As with any firearm, hell as with any mechanical design, faults have been found with the PPS since its introduction. Also people find things they dislike on a more personal level.

Slide Stop Failure/Lock Up:
The biggest design fault was found with the slide stop/release. Basically the spring was not adequately captured and could in some cases slip out and lock the slide release back permanently. Walther has since repaired the design and newer pistols manufactured since 2010 have an upgraded spring and stop.

"Check your slide stop"
Definitely the best thread online regarding this issue. It has many pages but all you could ever want to know about it is in there. Most pre-2010 pistols still never experienced the failure, but S&W offers a free factory upgrade. Newer PPSs have not experienced the failure since the new design was implemented.


"Buying a Walther PPS 9mm tomorrow - Help - 2010 BA or 2011 BB ?."
Another guy asking about the slide stop issue.

Quick Safe Backstrap Failure:
As I said earlier, the QS backstrap system is without a doubt the most controversial feature of the PPS. Many have correctly pointed out that it is unnecessary and just one more assembly to fail. Actual cases of failure though have been very, very few, if any. The backstrap locks in with a tab, which is then covered by the baseplate of the magazine. On top of that, two teeth on the baseplate go up into the backstrap holding it in place. There is no way for the strap to completely fall off the weapon with a magazine inserted. Still nothing is foolproof.


"Warning! Walther PPS' a discussion about the Quick Safe Backstrap failing"
Page one outlines the problem and pages 2 and 3 kind of breakdown into fighting, but on page 4 some very good points are made. I do note that originally the owner says the backstrap fell off, but later he just says it slipped down a bit. I can tell you from my own gun, his is not behaving properly. Please also note his gun was from 2008, so it was an early one. Its possible it was faulty from the factory. No one is perfect, not even Germans.


"PPS owners beware! I had a total back strap failure today! "
A somewhat less well documented case of a stranger's PPS failing at the range. Still worth reading if you like and they keep a pretty friendly tone.


"Walther PPS 9mm questions(back straps etc…) "
More questions and opinions.


"Walther PPS Fail?"
And one more to be thorough....

Personally, and this is my opinion naturally, I think the backstrap is not an issue. If it fails on a half dozen guns over a four year time span over thousands of examples, that's about par for any other part's rate of failing. It's no more prone to fail than any other part of any other handgun. I agree its not necessary, but it is good PR for Walther. Also it does make the PPS legal to own in more markets, especially in Europe. Its possible that the Quick Safe system gives the PPS enough 'Points' under the '68 Firearms Owner's Act to make it importable in standard configuration, I am not sure. People will continue to argue over this but I agree with one of the posters in the links above. He said in short that you shouldn't let a lock stop you from buying a handgun that you otherwise like and want to own. The chances of the backstrap failing during a defensive situation are so astronomically slim they aren't worth worrying about. It would be great if Walther offered the PPS with or without the QS system, but the pistol was designed for the EU market first and it does give the weapon some appeal and legal validity there at least. I guess what I am trying to say is the QS system means Walther can sell more guns, at least that is their expert opinion. Why else would they have it in their weapon?
Anyhow, read the threads and make your own decision. The backstrap on mine has never given a problem and I find it far less annoying than other internal safeties such as a magazine disconnect or an internal keylock.

Where is the PPS Really Made?

"where was my PPS manufactured"
A short and basic post regarding where the PPS is manufactured.

"PPS...all German or no?"
A little more in-depth information but still some speculation and conjecture.

There is no real possible definitive answer to the backstrap question, but at least this one I can answer satisfactorily.  According to Earl at carlwalther.com, in an email conversation I had with him about the PPS, all PPS pistols are 100% manufactured in Germany.  This coincides with what S&W also says (the exception being the magazines that are contracted out to Italy). They both use exactly the same frames, barrels, recoil springs, and magazines. Both have steel slides but for some reason they seem to use different types of actual steel. No explanation has been given by either Earl or S&W and Earl is not 100% on the exact steel used in the US PPS version. He is clear though that the slide is still made in Germany. He stated that the US version has a heavier trigger. Perhaps this was done for legal reasons on S&W's part? I know they do a Massachusetts version with a 10 lb trigger to comply with that state's laws. The trigger on my PPS is at about 5.5-6.0 lbs after a bit of break-in. If anyone out there has an Earl's/International version and could provide the pull weight of its trigger, I would be very appreciative. In any case, trigger jobs can be performed on the US version. I do know that the first generation of S&W imported PPSs did have grittier feeling triggers when compared to more recent ones. So its possible they have tweaked the trigger assembly on the S&W imports a bit since 2007-2008.

As for the P99s imported by S&W having US made slides and barrels, that appears to be true for some of them, mostly some in .40 caliber. I just checked my P99AS and my P99c QA and both have the standard Ulm proof marks on the barrel and slide as well as German date codes. With the SW99 series, the frames were German and slides and barrels were US. With P99s, you need to check. Some were made with all German parts and others with S&W parts. This wasn't done as a trick or anything. Its just that there was a higher demand for the P99 in .40 cal than expected so to speed up production S&W started manufacturing some parts.

In any case, All PPS pistols are manufactured in Germany, end of story. I am grateful to Earl for his friendly and quick service. He is a knowledgeable and helpful man.

Conclusions

I like the PPS. I make no claim otherwise. That said I have tried to be fair about the weapon and to give rational reasons for why I feel the way I do.

Oh and just to say it here, I also like the P99 and the new PPQ. I've owned a polymer framed Walther of one kind or another for over 10 years now and have still yet to experience any kind of failure. I could say the same for various Glocks I've had or fired, but I just like how Walthers fit my hand more. Personal taste and all that.

Cheers Interweb.

Click here for the Ozark Bear Arms Gunbroker auction page!

The Evolution & Variants of the AK-47: Part IV - Frequently Asked Questions

by Mishaco (Originally posted on The Firing Range 14-Jan-2010)


This article is part of a series:
Part I - Development and History
Part II - Military Variants and Accessories
Part III - Civilian Semi-Automatic Variants


Part IV -  FAQ

Q: Tell me about the differences between milled and stamped receivers?
A: They are made differently...one is machined from a block of steel. The other is a single pressed sheet of steel that is then folded into a U shape with rivets and pins. They take the same forearm furniture though its of different shapes. Their buttstocks are not interchangeable.

Q: Will my Yugo Sporter take standard furniture?
A: No, the Yugo's handguards are longer than standard. Its buttstock is held onto the rifle in an entirely different way too. Only pistol grips can interchange.

Q: Will my Tantal Sporter take standard furniture?
A: It will take any standard fixed buttstock for a stamped gun and any right-hand folding stock that uses normal rear trunions. It will also take standard pistol grips and lower handguards. the only part that is unique on the Tantal is the upper handguard.

Q: Can I put one of those K-Var solid side folding stocks on my rifle?
A: Probably not, unless your rifle is say one of the ORF AKS-74 builds. The K-Var stock is a left-side folder, which uses a totally different rear trunnion, separate latching piece, and even a different receiver. To modify say a WASR to use one, you'd need to make quite a few new holes in the receiver and change the angle of the back of it too. Its just not practical. Just by an Arsenal SLR if you really want a rifle with that stock. If you do have an ORF AKS, then go for it. Nothing could be more simple. All you need do is drive out one single pin, take your old stock off, put the K-Var stock in, and drive the pin back in... Done!

Q: Are WASRs made from rejected military parts?
A: No concrete evidence has surfaced to proove this is the case. Rather in recent years they have begun building WASRs from actual military rifles so by definition they can't be of reject parts. If there is a triangle with an arrow in it or just an empty box on your front trunnion, then your WASR was made from a real military gun.

Q: What's the deal with SGLs? Why not just buy a normal Saiga?
A: They were never Saiga Sporters with a pushed back trigger group and hunter furniture. They were made as thumbhole stocked guns with their triggers in the right spot and with normal forearm furniture. Also they have markings that more closely resemble Russian military ones, than the Saiga Hunters do. Finally, their receivers have the dimples on each side of the magwell, to complete the military look. In short, the reason to buy an SGL is to get a rifle that closely memics a real Russian AK-74M/AK-103, but without the folding stock.

Q: I see PSLs but no SVDs. Why isn't someone importing or building an SVD clone?
A: They are banned from import by the 1989 restrictions by name and in 1994, Russia agreed to stop exporting hunting versions of the SVD into the USA. No one is making one here because it would be too damn expensive and a US made SVD would loose its Russian mystique. In short, it's not profitable.

Q: How do I field strip my AK?
A: Like this....
1) First remove magazine and triple check that the chamber is empty:

(Click to Enlarge)

2) Remove the dustcover.  Push the button in all the way, which is located at the rear of the dustcover. While holding it in, pull the dustcover up and off at a slightly tilted angle towards the front of the rifle:

(Click to Enlarge)

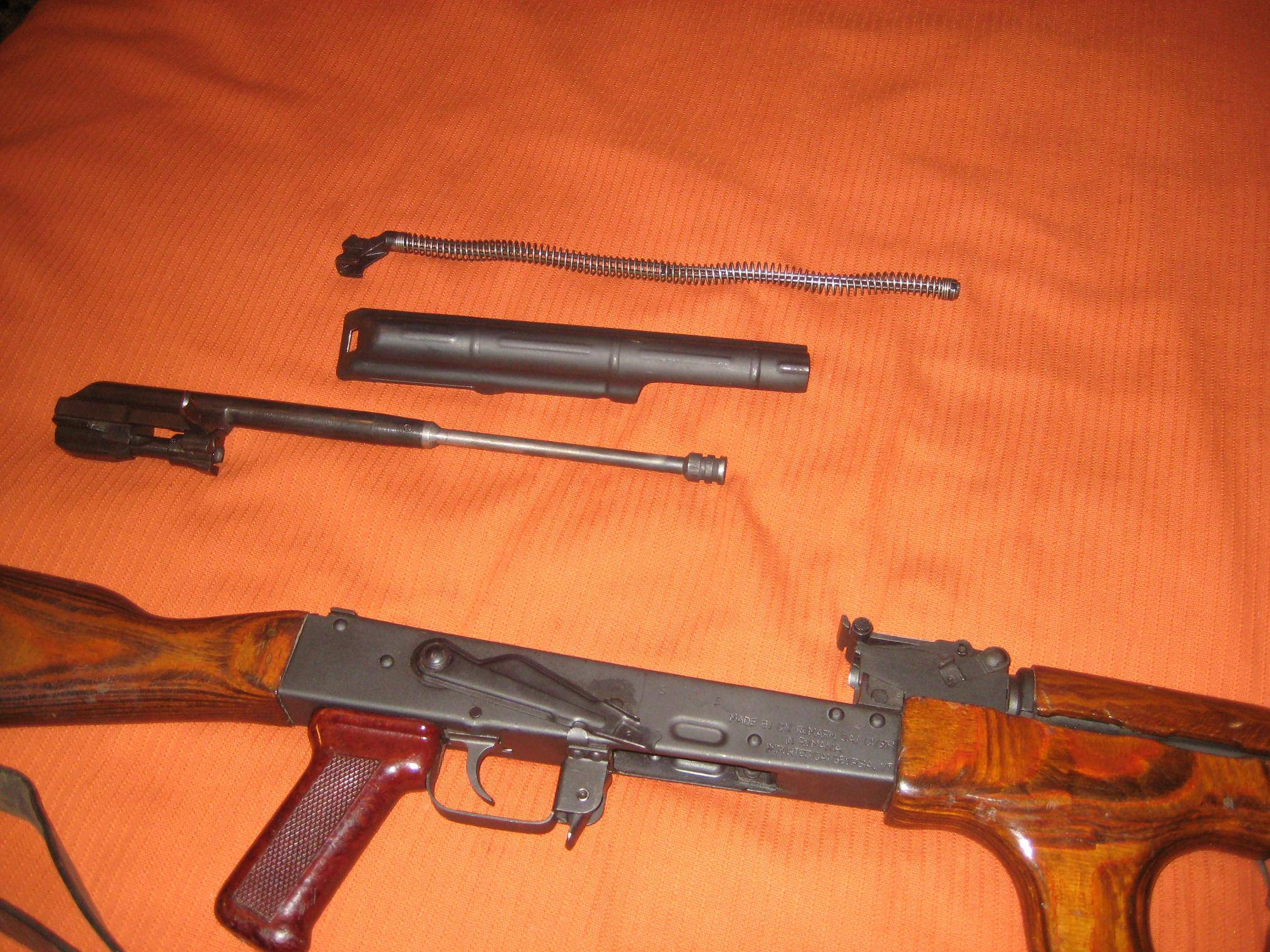

3) Remove the recoil spring & rod.  With the dustcover off, you can see the internals of the rifle. Push the same button again and now with the cover off it will move all the way out of its guide grooves and then let go. Spring tension will push it back forward but just make sure it goes above its grooves. Then just pull the spring and rod out of the bolt carrier:

(Click to Enlarge)

4) Remove the bolt carrier, with bolt in it.  Grab the charging handle and pull all the way to the rear of the receiver. You will feel minor resistance as it passes over the hammer. Once in the rear most position, simply lift the bolt carrier out of the receiver. It will take with it the gas piston and bolt:

(Click to Enlarge)

5) Take the bolt out of the bolt carrier.  Push the bolt back until it impacts the rear of the bolt-carrier and then rotate the lugs out of the way. When it is in the correct position you can then push the bolt forward and it will come out of the carrier.

(Click to Enlarge)

6) Remove the gas tube.  Now that the bolt-carrier is out of the rifle, you can remove the gas tube, which houses the upper handguard. Look on the right side of your gun, on the trunion, just below the rear sight. You will see a lever. Move it clockwise to about the 11:00 position. This might require a good amount of force so you might want to use a small hammer. On other guns, this lever can be moved by hand. When the lever is in position, you just lift the gas tube off.
On rifles with the AK-74 style spring-loaded gastube, you will need to push the tube rearwards a small amount, and then lift it off.

(Click to Enlarge)

This is as much as you should take your AK down, for standard cleaning. Do not remove the lower handguard excessively or it could become loose. Buttstock is held in place with 2 screws. Just remove these and pull it out, if you are replacing the stock. Otherwise do not remove it excessively either. Lower handguard is held on with a lever and spring clip.
Removing the barrel is not a good idea either. Only do this if it is100% neccessary.

Q: What's the difference between 'Warsaw' and "NATO' length stocks?
A: Short answer, NATO is longer. The Warsaw stock was the standard length used in most all of those nations during the Cold War. The NATO length is based on the length of the M16A2's stock. The NATO is 1" & 1/4th" longer than Warsaw. There is also an intermediate length stock which is 3/4th" longer than Warsaw and is currently being offered for both milled and stamped receivers by Arsenal USA.

Q: I'm thinking about building a stamped AK and I need a receiver. What do the percentages mean?
A: A 100% receiver is prebuilt and ready to have the trunnions riveted in. These are serialed, and must be transferred through an FFL just like a completed firearm.

An 80% receiver is a length of square steel tubing. While this can ship directly to your door (no FFL), you will need to drill all axis pin and trunnion rivet holes, as well as cut out the magazine well and install the center support and internal rails.

A 0% receiver (or 'flat') is simply a piece of sheet metal that must be bent into a receiver shape. Most flats have the holes predrilled and the magazine well already cut out, but you'll still need to install the internal rails and center support. With good quality 100% receivers available for a reasonable price, there's really no need to invest in the tooling to build up an 80% or less receiver.




Useful Links:

English version of Izhmash's Official site:
http://www.izhmash.ru/eng/
(current manufacturers of the AKM, AK-74M, and semi-auto SGL series)

Arsenal USA's Official Site:
http://www.arsenalinc.com/
(Importer and manufacturer of semi-automatic AK clones)

Arsenal of Bulgaria's Official Site:
http://www.arsenal-bg.com/main.htm
(In Bulgarian)

List of USA manufacturers of the AK and AK parts:
http://www.ak-47.us/AK47_Manufacturers.php
(also has links to pictures)

List of foreign manufacturers of the AK:
http://www.ak-47.us/AK47_Factories.php

The Wikipedia homepage for the AK-47/AKM:
http://en.wikipedia.org/wiki/AK-47
(they have a few errors, but not too bad for the AK-47, but when you branch out to the variants, they get worse)

Max's site. He lives in St. Petersburg Russia and has a lot of first-hand AK experience.
http://world.guns.ru/assault/as01-e.htm
(AK-47 & AKM)

http://world.guns.ru/assault/as02-e.htm
(AK-74 & AK-74M)

Links to different field manuals related to the AK.
http://www.ak-47.us/AK-47_User_Manuals.php
(donated by Miso Beno )

'The Big Guide to Romanian AKs'
http://www.weaponscache.com/forum/a...ccessories.html
(a great write-up of the Romanian military PM-63 & PA-86)
